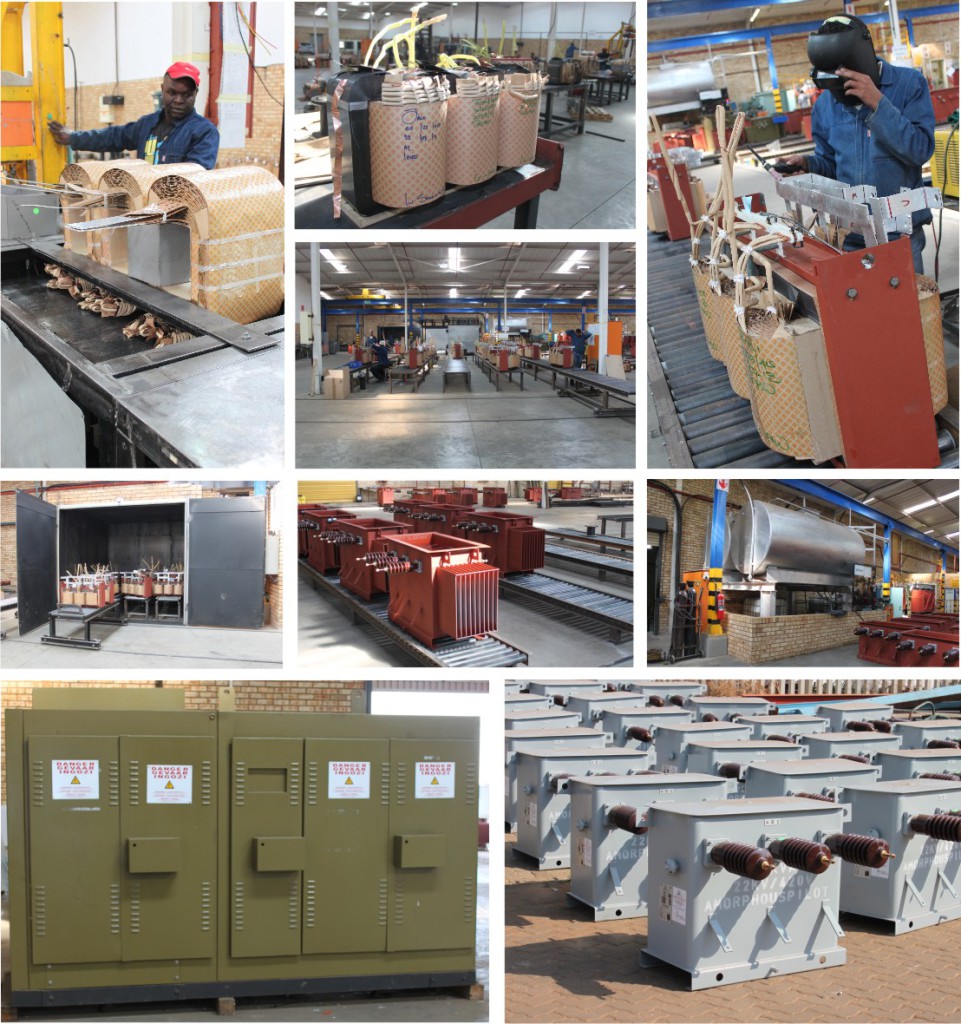

Oil immersed distribution transformers
Revive Electrical Transformers has the largest oil distribution transformer factory in South Africa, combined factory space of 17 000 square meters.
We have the manufacturing capabilities of producing 3000 oil distribution transformers per month.
Product Range:- Single phase transformers
- 16kVa – 100kVa
- 1.9kV – 33Kv
- Three phase transformers
- 25kVa – 5000kVa
- 1.9kV – 33kV
Transformers comply with SANS 780 and IEC 60076.

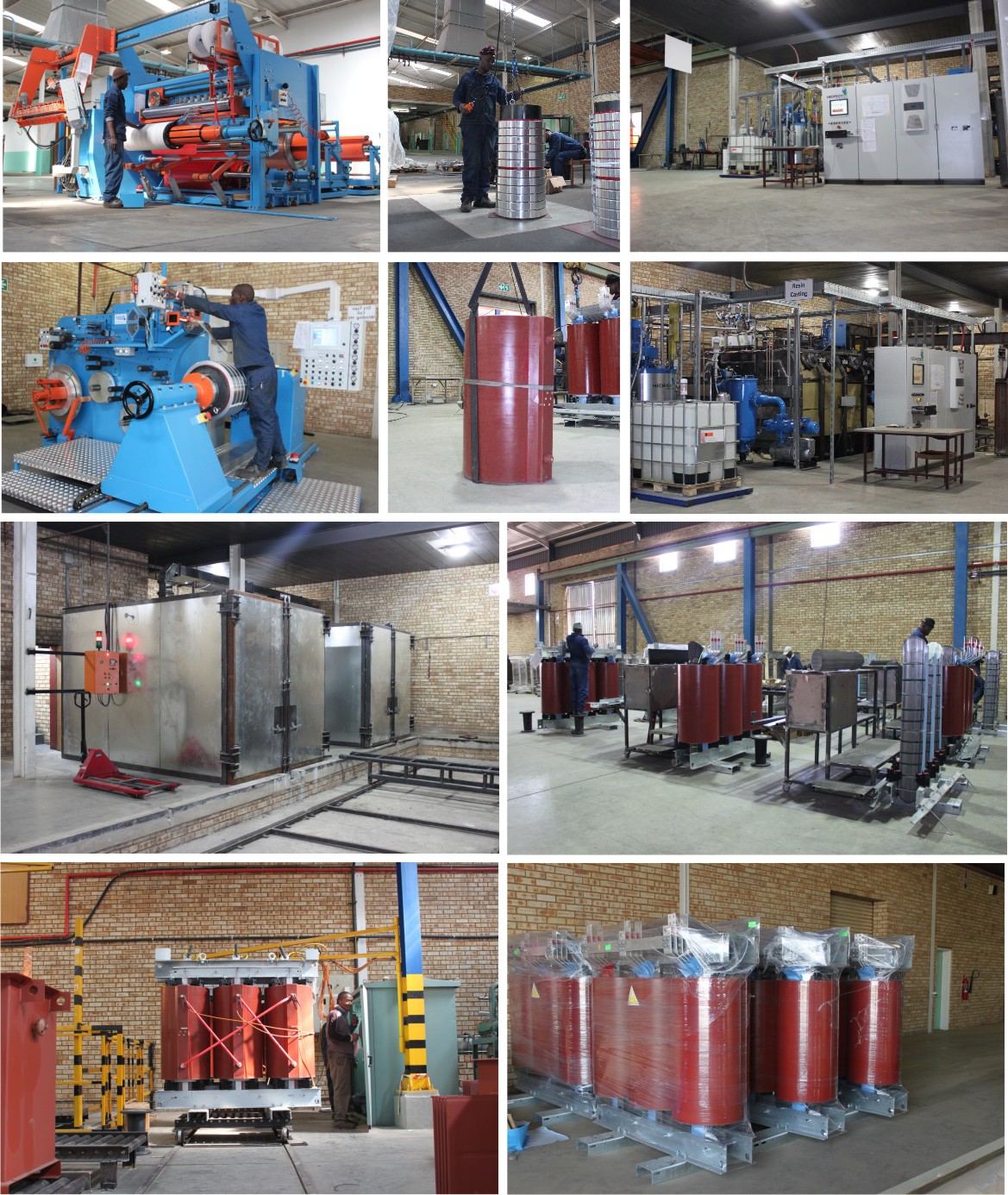

Cast Resin dry type transformers
Product range, capacity- From 100 kVA up to 5000 kVA
- High voltage: From 3.3KV up to 22 kV
- Low voltage: 0,38kV up to 6,6 kV
- Vector Group Dyn11 and other at request
Per month production capacity today is 70-100 Transformers, per month within these facilities
Most advanced production technologies from Europe to guarantee the best product quality.
- The most demanding quality control system to guarantee the total reliability of the product
- First company to produce cast resin dry type transformers in South Africa
- The deepest experience in the design to guarantee the best technical solutions in all applications by European Consultant and experts
- Present all over South Africa and sub Saharan Africa and guarantee the fastest delivery and best after sales service
- ISO 9001 Certifications
- ISO 14000 and 18000
Transformers comply with SANS 780-11 and IEC 60076-11.

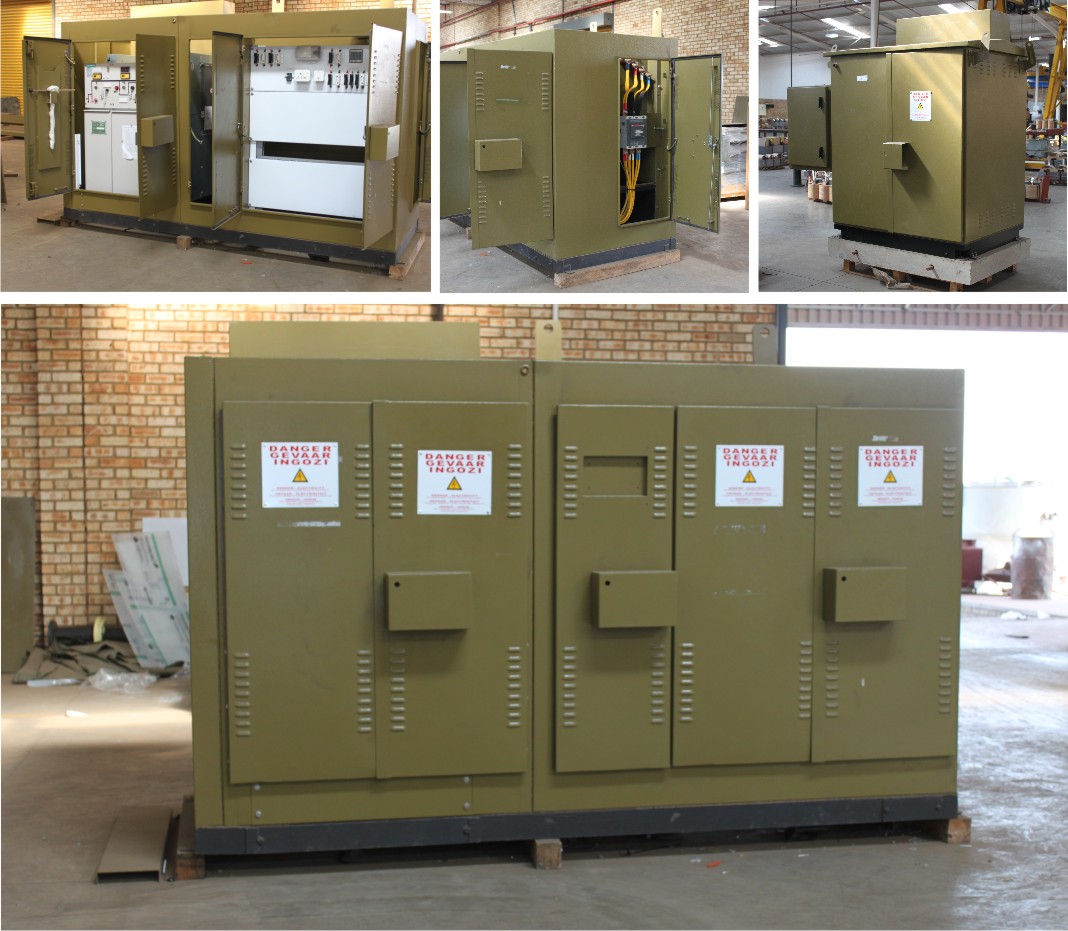

Oil Mini-Substations
Revive Electrical Transformers builds a variety of Mini-Substations from 100kVa -1000kVa to various municipality, Eskom and private specifications. We use various brands of Ring Main Units including the likes of Siemens, Schneider, Lucy and ABB products.
Product Range:- Eskom Mini-Substations with SF6 Ring Main Units from 3.3kV – 33kV.
- City Power Mini-Substations with SF6 Ring Main Units from 6Kv – 11kV
- eThekwini Mini-Substations with SF6 Ring Main Units from 6.6kV – 22kV
- Tshwane Mini-Substations with SF6 Ring Main Units from 6.6Kv – 22kV
- Ekurhuleni Mini-Substations with SF6 Ring Main Units from 6.6kV-22kV
- Various Mining Companies 1.9kV – 33kV
- Custom built Mini-Substations for private use.
Our current capacity on Mini-Substations is 100 units per month. We have a factory size for Mini-Substations of 4000 meter squares.
Transformers comply with SANS 780and IEC 60076.
Cast Resin Mini-Substations
Revive Electrical Transformers is the first company in South Africa to locally build Cast Resin Mini-Substations to unique customer requirements.
Product Range:- 200kVa – 3400kVa Mini-Substations with SF6 or Vacuum Ring Main Units with insulation glass 3.3kV – 33Kv
Transformers comply with SANS 780-11 and IEC 60076-11
Neutral Earthing Resistors (NER), Compensators(NEC) and compensators with Auxiliary transformers (NECRT)
Revive Electrical Transformers builds Neutral Earthing Resistors (NER), Compensators (NEC) and compensators with Auxiliary transformers (NECRT) from 1997 and have become specialists in these units.
Product Range:- Combined Neutral EarthingCompensator, Neutral Earthing Resistor and Auxiliary transformers (NECRT) from 3.3kV – 33kV
- Neutral Earthing Compensators (NEC) from 3.3kV – 33kV
- Neutral Earthing Resistors (NER) from 3.3Kv – 33Kv
- Auxiliary transformers (AUX) from 50kVa – 315kVa , 3.3kV – 33Kv
Transformers comply with SANS 780 and IEC 60076.
Single wire Earth Return transformers (SWER Transformers)
Revive Electrical Transformers manufactures a variety of SWER transformers and has been working closely with utilities to perfect the design of these transformers.
Product Range:- 16kVa 19KV/240V
- 32kVa 19kV/240V
- 64kVa 19kV/240V
- 64kVa 19kV/240V
- 50kVa 22kV/19V
- 50kVa 33kV/19V
- 100kVa 22kV/19V
- 100Kva 33kV/19V
- 200kVa 22kV/19V
- 200kVa 33kV/19V
- 400kVa 22kV/19V
- 400kVa 33kV/19V
Transformers comply with SANS 780 and IEC 60076.

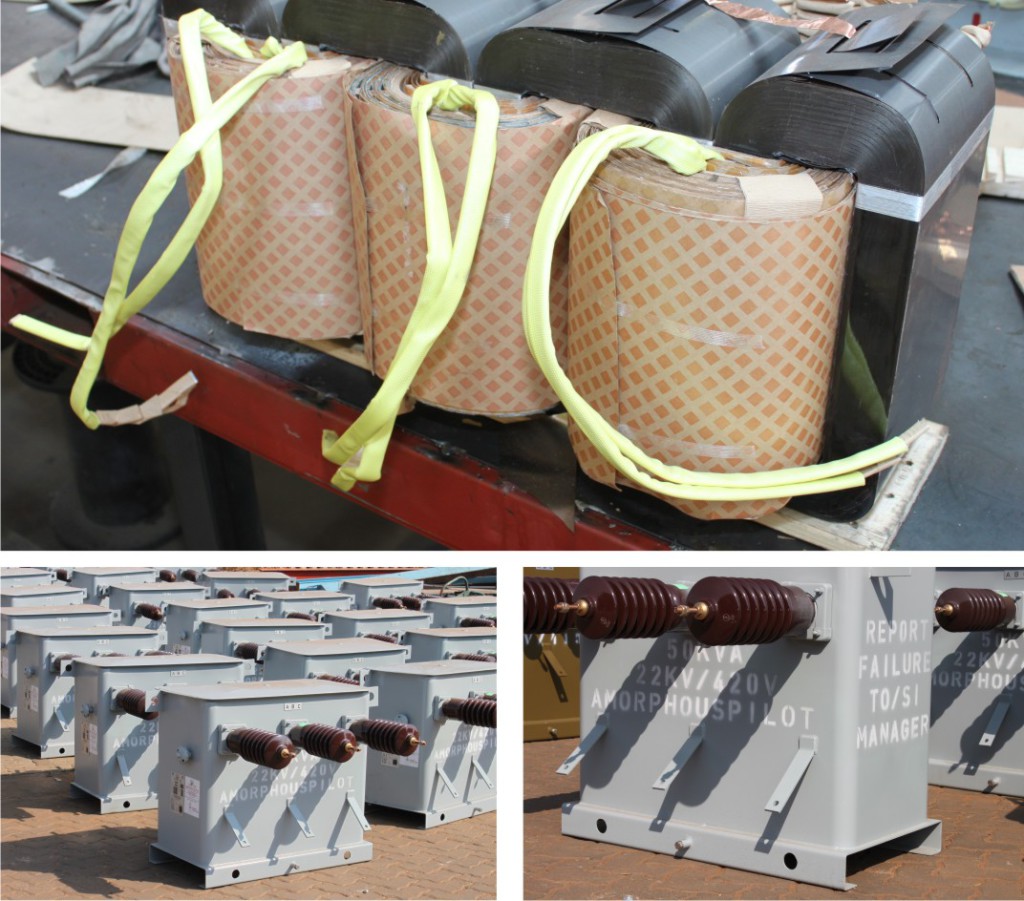

Amorphous core transformers
Revive Electrical Transformers is the first company in South Africa to be awarded a contract for three phase Amorphous core transformers. We are also the first in South Africa to pass short circuit impulse and heat run type tests on a 50kVa 22kV/420V transformer.
Product Range:- Single phase transformers
- 16kVa – 100kVa
- 1.9kV – 33Kv
- Three phase transformers
- 25kVa – 5000kVa
- 1.9kV – 33kV
Transformers comply with SANS 780 and IEC 60076.
Custom Design Transformers
Revive Electrical Transformers can manufacture various special transformers including Step Up and Step Down transformers from auto transformers, rectifier transformers and mining transformers.
We also build transformers to international specification, EDM, SESKO , SEC etc.
